Show me your NAS!

Posted by: A. Lawson on 24 January 2014

I figure that we show pictures of everything else, why not these?



I run a Linux based computer with



Dualcore 2.4ghz Intel processor

2gb RAM

2x 4TB Seagate 7200rpm drives for music only RAID 1

1.5TB Western Digital for movies and TV shows

250gb Western Digital for random crap

120gb Seagate SSD for Operating system



4x 120mm fans and 1x 190mm fan up top. All run full blast all the time.



I'll add a picture tomorrow.

Posted on: 24 January 2014 by joerand

You did say picture of your nas, right?

Posted on: 25 January 2014 by hungryhalibut

'Show me your vacuum cleaner' would be much more interesting. I have a very nice Sebo. The NAS is simply a Synology 213j.

Posted on: 25 January 2014 by joerand

Could have been worse. Could've asked for a picture of the wife's nas.

Posted on: 25 January 2014 by Scooot
Maybe a new title for the system pictures thread.

NAS - naim audio system

Scott
Posted on: 25 January 2014 by Simon-in-Suffolk

>>'Show me your vacuum cleaner' would be much more interesting.

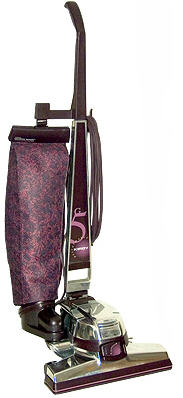

We have a rather handsome Kirby vacuum.



Posted on: 25 January 2014 by joerand

Wow Simon. Not only looks good but sucks as well. I won't suggest an alternate thread title for fear of moderation.

Posted on: 25 January 2014 by garyi

I'll give you a twofer.



A pair of proliants running OpenMediaVault.



Faster than most nases, needs a little set up but can be configured to run 16gig of ram, with expansion slots etc. Great little devices for the money



Posted on: 25 January 2014 by Aleg

My home made NAS and SAN combination.

Based on SuperMicro, Xeon mobo and Norco chasis.

Free OmniOS that supports the superb ZFS filesystem with in-built error detection and correction and setup in RAID-5 groups.





3 x 12 cm fans between disc section and mobo section

2 x 12 cm fans exhaust from chassis.

Temp < 37 degrees.

All silent Noctua fans and virtually noise free.

Just the discs are humming on the background.



Plenty of space for extending capacity.

Posted on: 25 January 2014 by Bart

It's too big for Fraim I'm afraid



Posted on: 25 January 2014 by Bart
Originally Posted by joerand:

You did say picture of your nas, right?

You're nuts.



(See what I did )

Posted on: 25 January 2014 by BigH47

Similar to Garyi, only one HP NAS.

Posted on: 25 January 2014 by james n

Tucked out of the way in the office. Trusty old NV+ with a headless Mac Mini as the iTunes server / Ripper.



Posted on: 25 January 2014 by james n
Originally Posted by Chief Chirpa:

 - Good album too.

Posted on: 25 January 2014 by Sorren
Originally Posted by Simon-in-Suffolk:

>>'Show me your vacuum cleaner' would be much more interesting.

We have a rather handsome Kirby vacuum.



Looks like mine

Posted on: 25 January 2014 by A. Lawson
Originally Posted by Aleg:

My home made NAS and SAN combination.

Based on SuperMicro, Xeon mobo and Norco chasis.

Free OmniOS that supports the superb ZFS filesystem with in-built error detection and correction and setup in RAID-5 groups.





3 x 12 cm fans between disc section and mobo section

2 x 12 cm fans exhaust from chassis.

Temp < 37 degrees.

All silent Noctua fans and virtually noise free.

Just the discs are humming on the background.



Plenty of space for extending capacity.



Posted on: 25 January 2014 by A. Lawson

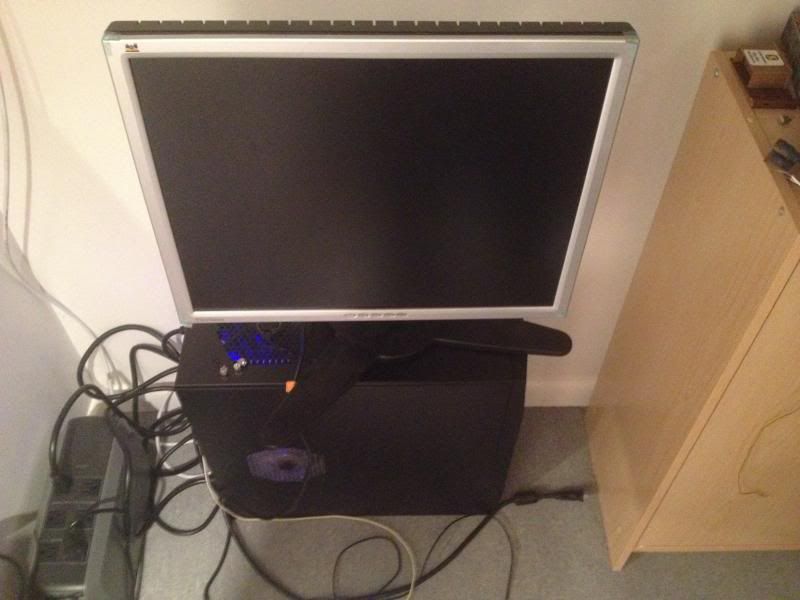

Here is mine. its ugly, simple, and cheap.

Posted on: 25 January 2014 by garyi

Certainly Aleg wins this round.

Posted on: 25 January 2014 by A. Lawson

yes he does.

Posted on: 25 January 2014 by Jota



and while we're at it...



Posted on: 25 January 2014 by A. Lawson

i think the Miele wins the vacuum round unless there are other takers

Posted on: 25 January 2014 by joerand

Mine's from 1990 and has a hose clamp and lots of duct (duck) tape on it. I'd be embarrassed to show it. I need to think about a Miele

Posted on: 26 January 2014 by DomTomLondon

I've got a Synology NAS tucked away in a cupboard not too far from the UnitiQute. I know some of you might not approve having it so close to the audio system. I've set it to the lowest fan setting when in use and it goes to sleep when not in use so I never hear it at all.

At some point I might run some network cable to the storage cupboard in the hall and put the NAS in there, but for the time being it's fine where it is. The USB drive next to it backs up the NAS once a day.

Posted on: 26 January 2014 by Aleg

Nicely done Tom.

keeps your room tidy and in style.



My monster machine (resting on Ikea LACK table of perfect size for 19" racks) is upstairs in my office and connected via ethernet running through ducts in the house.



cheers



Aleg

Posted on: 26 January 2014 by DrMark

I have one of these:



And one of these:



Posted on: 26 January 2014 by Steve O
Have you ever considered putting your Naim boxes side by side?

Originally Posted by DomTomLondon:

I've got a Synology NAS tucked away in a cupboard not too far from the UnitiQute. I know some of you might not approve having it so close to the audio system. I've set it to the lowest fan setting when in use and it goes to sleep when not in use so I never hear it at all.

At some point I might run some network cable to the storage cupboard in the hall and put the NAS in there, but for the time being it's fine where it is. The USB drive next to it backs up the NAS once a day.
